Upgrades

We offer a great variety of upgrades for the Laurier/Besi/Datacon Die Sorters such as the DS4000, DS4500, DS9000, DS9-100, DS11000 and DS9000e.

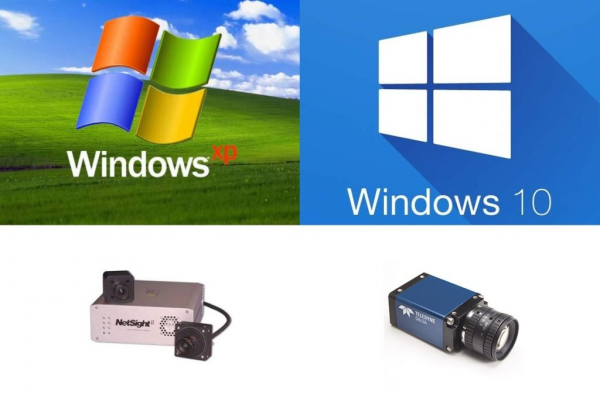

WINDOWS 10, VISION SYSTEM AND I/O UPGRADE

Make your Die Sorter 21st century proof!


Upgrades the following obsolete items:

Updated Windows Technology

  • Netsight Vision PC and main PC to a single quadcore industrial PC
  • Windows 3.1 or XP to Windows 10
  • Analogue camera system to modern GigE camera system
  • ISA bus I/O cards to PCI I/O cards
  • Most of the features the DS9000e and DTS-2 have are included

Advantages:

GUI calibration and operation
  • Parts will be available for decades to come
  • Throughput improvement up to 25%
  • Improved GUI simplifies recipe setup, calibration and operation.


FLEXURE UPGRADE

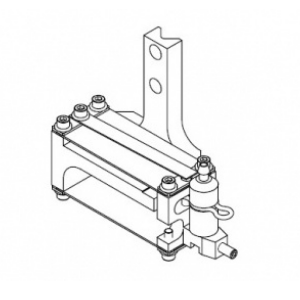

Old version of Airxpot Collet Holder Design

Old Airpot Collet Holder Design



  • Obsolete since 2005
  • Play on airpot leads to inaccuracy
  • Inconsistent gram force
  • Low gram force not an option
  • Z compliance is set by air pressure
  • Airpot spare parts no longer available

New Flexure Collet Holder DesignFlexure Collet Holder Design



  • Proven technology (introduction in 2005) – available on all platforms
  • Better accuracy, down to +/- 37µm and +/- 1°
  • Less maintenance; will not wear out.
  • Low gram force down to 20 grams
  • Z compliance no longer set by air pressure
  • Long term availability of spare parts (all build to print parts)


DIE ELEVATION UPGRADES


Backlit Anvil

Backlit Anvil

  • For improved vision alignment
  • For all needle patterns
  • Able to withstand high temperature (suitable for heated Die eject)
  • Available in different colors or IR

Vise Needle Holder

Vise Needle Holder

  • For accurately picking down to 0.1mm Die
  • Suitable for single needle
