DTS-2 Die Sorter Equipment

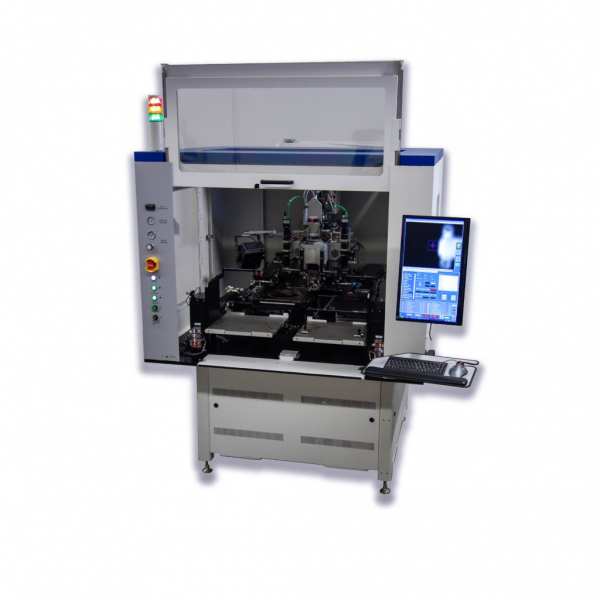

DTS-2 System

The DTS-2 dual-head die sorter is a high-quality machine that can produce wafer die to meet most production lines’ specifications. Using fully automated processes, this die sorter equipment separates wafers into categories based on pre-established characteristics. Features and benefits of DTS-2 wafer sorters include:

  • Ability to achieve up to 16,000 DPH throughput at +/-15µm accuracy, depending on the product
  • Runs on Windows 10 OS (upgrades available)
  • Supports all wafer map formats and SECS/GEM
  • Suitable for cleanroom environments that meet Class 10,000 or Class 100 specifications

Syagrus Systems manufactures the DTS-2 machines and other die pick-and-place equipment required for effective wafer packaging. We have the industry expertise to help you achieve your desired outcomes, from processing wafers to providing spare parts for die sorter equipment and beyond. Contact us today to learn more and get started.

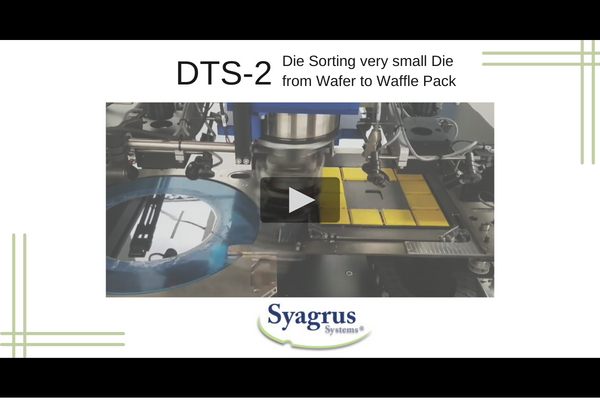

die sorting very small die from wafer to waffle pack video

The DTS-2 Wafer Sorter Delivers Extreme Accuracy at High Speeds

The DTS-2 die sorter is equipped with a dual head and optional inverter for die transfer. Using the DTS-2 machine to sort wafer die is a cost-effective way to achieve a high yield of wafers that perform as intended without cracks, chips, contaminations, or other issues.

For further specifications and technical information, download our free DTS-2 die sorter equipment datasheet.

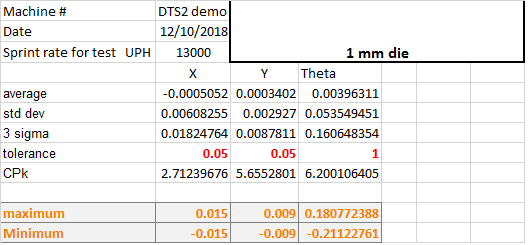

DTS-2 System Demo Statistics

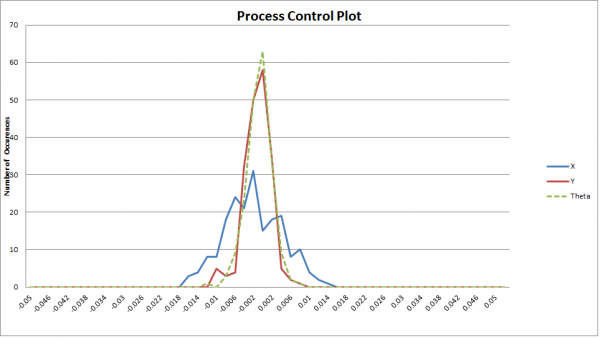

DTS-2 System Process Control Plot


DTS-2 System Die to Die Spacing

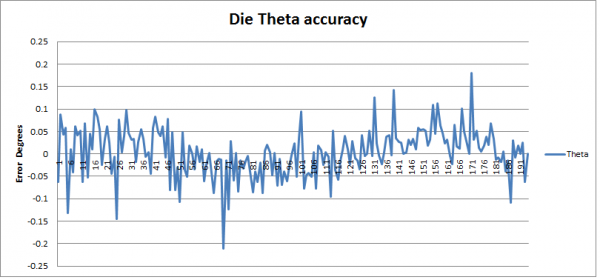

DTS-2 System Die Theta Accuracy Chart

DTS-2 Die Sorter vs. DTS-1 Die Sorter

Precise, high-speed, and ideal for high-volume productions, the DTS-2 dual-head die sorter is an excellent addition to automated manufacturing lines across industries. However, it is not the best option for every single application. If your production involves low- or medium-volume sorting, a single-head DTS-1 wafer sorter may be a better choice.

Call 651-209-6515 to speak with a representative and receive assistance navigating your options or selecting the right equipment for your setup.

Input Capabilities

DTS-2 die sorter equipment can auto load up to 300mm wafer frames from cassettes with programmable automatic stretcher for the optional auto loads included. Wafer map download is accomplished through a standard laser barcode reader or an optional 2D and QR barcode reader.

  • Die size from 0.2mm up to 45mm sq.
  • Die thickness as low as 12µm
  • Waffle pack, gel pack, and JEDEC trays

Output Capabilities

The DTS-2 die sorter outputs wafer die with high accuracy at a fast speed. It features an optional 2D and QR barcode reader or the standard laser barcode reader for output mapping. Other output specifications include:

  • Wafers up to 300mm/12”
  • 2”, 3”, or 4” waffle pack, gel pack, and JEDEC trays

DTS-2 Wafer Sorter Equipment Visual Inspection Capabilities

Syagrus Systems manufactures die sorter equipment to achieve accurate die placement and sorting through innovative vision inspection capabilities, such as detecting defects at a minimum size of 10µm for 12mm die and better on smaller die. Choose between topside or top and bottom-side to detect chips, cracks, and other flaws. Our innovative wafer sorter equipment also features:

  • Bump inspection
  • Foreign material detection
  • Dimension measurement
  • Laser marking defects
  • OCR text or QR code recognition and mapping

DTS-2 die sorting equipment comes standard with a 640x480 resolution camera. Optional upgrades to 1024x1400 or higher resolutions are available, depending on your required defect size.

Contact Syagrus Systems to Order High-Quality DTS-2 Die Sorter Equipment


Syagrus Systems focuses on being your dedicated problem solver and solution provider, supporting you as you establish your facility’s production line. Our team is ready to help you transition from engineering projects to full production ramp-up. Contact us today with questions about our products or services. Request a quote when you’re ready to get started.
